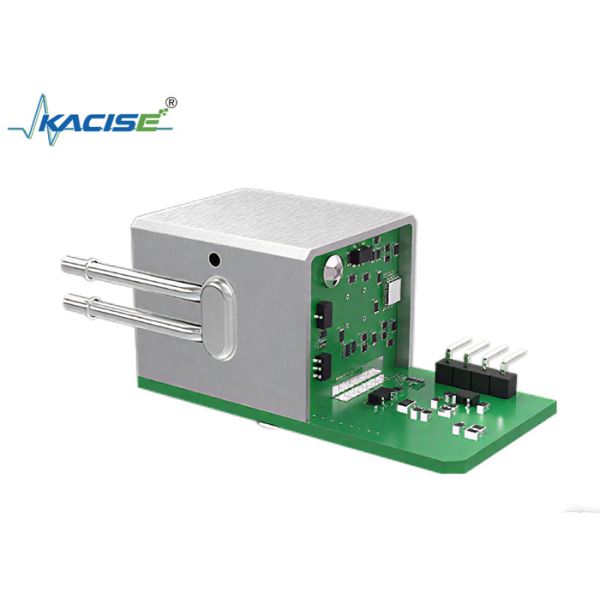

Sidestream End - Tidal Carbon Dioxide Sensor KGD - 411 for Measuring CO₂ Concentration

Data Output : CO₂ Concentration (mmHg), End - Tidal CO₂, Inhaled CO₂, Respiratory Rate

Detection Principle : Non - Dispersive Infrared Technology (NDIR)

Brand Name : KACISE

Model Number : KGD-411

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Respiratory Rate Accuracy : ±1 breath

Detection Range : 0 - 150mmHg

Respiratory Rate Range : 0 - 150BPM

Resolution : 0.1mmHg

Contact Now

Sidestream End-Tidal Carbon Dioxide Sensor KGD-411
High-precision CO₂ sensor module for measuring CO₂ concentration in medical and diagnostic equipment.
Key Specifications
Attribute Value
Detection Principle Non-Dispersive Infrared Technology (NDIR)
Data Output CO₂ Concentration (mmHg), End-Tidal CO₂, Inhaled CO₂, Respiratory Rate
Detection Range 0 - 150mmHg
Resolution 0.1mmHg
Respiratory Rate Range 0 - 150BPM
Respiratory Rate Accuracy ±1 breath
Sidestream End - Tidal Carbon Dioxide Sensor KGD - 411 for Measuring CO₂ Concentration
Product Overview
The KACISE sidestream end-tidal carbon dioxide sensor is a precision CO₂ sensor module utilizing infrared absorption spectroscopy technology. Designed for integration into medical monitoring devices, nutritional metabolism analyzers, and cardiopulmonary function testers.
Key Features
  • Independent NDIR sensor technology for reliable measurements
  • EMI system for effective anti-electromagnetic interference
  • High signal-to-noise ratio and superior detection accuracy
  • Compact dimensions for easy integrated installation
  • Low power consumption of just 0.47W
Technical Parameters
Parameter Specification
Detection Accuracy 0-40mmHg: ±2mmHg
41-70mmHg: True Value ±5%
71-100mmHg: True Value ±8%
100-150mmHg: True Value ±10%
Stability Short-term Drift: ≤0.8mmHg (4H)
Long-term Drift: Maintains accuracy within 120H
Power Requirements Input Voltage: 5.00V (±5%)
Average Current: <100mA
Peak Current: <200mA
Initialization Time Display within 15s, Full accuracy within 2min (25°C)
Environmental Conditions Operation: 0°C - 55°C, 10-90% RH (Non-condensing)
Storage: -40°C - 70°C, <90% RH (Non-condensing)
Data Communication TTL interface
Lifetime ≥5 Years
Dimensions 57.5mm * 23.7mm * 24mm
